Home > Products > Graphite Electrode > HP UHP 600mm Graphite Electrode for Steel Making

HP UHP 600mm Graphite Electrode for Steel Making

  • HP UHP 600mm Graphite Electrode for Steel Making
  • HP UHP 600mm Graphite Electrode for Steel Making
  • HP UHP 600mm Graphite Electrode for Steel Making
  • HP UHP 600mm Graphite Electrode for Steel Making

HP UHP 600mm Graphite Electrode for Steel Making

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 10 Ton
    Delivery Time: 30 Days
    Packaging: thick wood pallet
    Productivity: 60,000MT/year
    Brand: CarboGraphite
    Transportation: Ocean,Railway
    Place of Origin: China
    Supply Ability: 60,000MT/year
    Certificate: IOS, SGS
    HS Code: 8545110000
    Port: Tianjin,Qingdao,Lianyungang

Basic Info

Model No.: HP 600

Product Description

HP UHP 600mm Graphite Electrode for Steel Making

UHP HP 600mm Graphite Electrode

UHP 600 Graphite Electrode for Steel Making in Iran

HP UHP 600mm Graphite Electrode Price

RP HP UHP Graphite Electrodes by CarboGraphite are made to last.

Our capacity of UHP Graphite Electrodes is upto 60,000MT/Year, Low Ash Carbon Electrode Paste can reach upto 200,000MT annually. These high quality RP HP UHP Graphite Electrode has exported to Europe, Iran, Malaysia, Egypt, Pakistan, Turkey, Russia, Brazil.

Buy RP HP UHP Graphite Electrode from reputed manufacturer with stable supply capacity and worry-free quality along with technical support from the begining to the end.

Product Discription
CarboGraphite Graphite Electrode Specifications

HP UHP 600mm Graphite Electrode for Steel Making

RP HP UHP Graphite Electrode Diagram, Graphite Electrode Density, Graphite Electrode Dimensions



CarboGraphite offer a wide range of options on graphite electrode diameters and grades. Such as RP 500 Graphite Electrode, HP 600 Graphite Electrode, UHP 600 Graphite Electrode, UHP 650 Graphite Electrode, UHP 700 Graphite Electrode

See graphite electrode spec data chart as belows


Item Unit UHP HP RP
φ300-φ500
φ550-φ800
φ300-φ800
φ300-φ800
Resistivity

Electrode

Nipple

μΩm

μΩm

4.8-5.8

3.5-4.0

4.6-5.8

3.5-4.0

5.8-6.6

3.5-4.0

7.0-10.0

4.0-4.5

Modulus of Rupture

Electrode

Nipple

Mpa

Mpa

10.0-14.0

20.0-24.0

10.0-14.0

22.0-26.0

10.0-13.0

20.0-23.0

8.0-10.0

19.0-22.0

Young's Modulus

Electrode

Nipple

Gpa

Gpa

9.0-13.0

15.0-18.0

10.0-14.0

16.0-19.0

8.0-12.0

14.0-16.0

7.0-9.3

12.0-14.0

Bulk Density

Electrode

Nipple

g/c㎥

g/c㎥

1.68-1.74

1.78-1.82

1.70-1.74

1.80-1.84

1.64-1.68

1.75-1.80

1.53-1.56

1.70-1.74

CTE(100-600℃)

Electrode

Nipple

10-6/

1.10-1.40

0.90-1.20


1.10-1.40

0.90-1.20

1.60-1.90

1.10-1.40

2.20-2.60

2.00-2.50

Ash % 0.3 0.3 0.3 0.5

Graphite Electrodes by CarboGraphite is made to its highest quality, manufactured strictly to international standards, export to Europe. SGS inspection can be made before delivery.

Our Graphite Electrode Advantages

  • High Temperature Strength
  • Low Thermal Expansion
  • Excellent Thermal and Electrical Conductivity
  • Good Machinability
HP UHP 600mm Graphite Electrode Price graphite-electrode-manufacturers


Our Graphite Electrode Application (Graphite Electrode Function)

With its excellent density, conductivity and high-temperature resistance, CarboGraphite Graphite Electrode has a wide range of applications in steel making, metallurgy, smelting and mining. It is the key raw industrial material in steel plants and smelting factories.

CarboGraphite aims to be helpful to save the production cost, increase efficiency to our clients.

HP UHP 600mm Graphite Electrode Price graphite electrodes for sale

Illustration of Our Graphite Electrode Uses in Electrical Arc Furnace


In the steelmaking process, iron scrap gets melted in an electric arc furnace and recycled. Graphite electrodes, a kind of conductor, are an essential component in this kind of furnace. They can melt scrap at a temperature of about 1600℃.





HP UHP 600mm Graphite Electrode Price graphite electrode for electric arc furnace

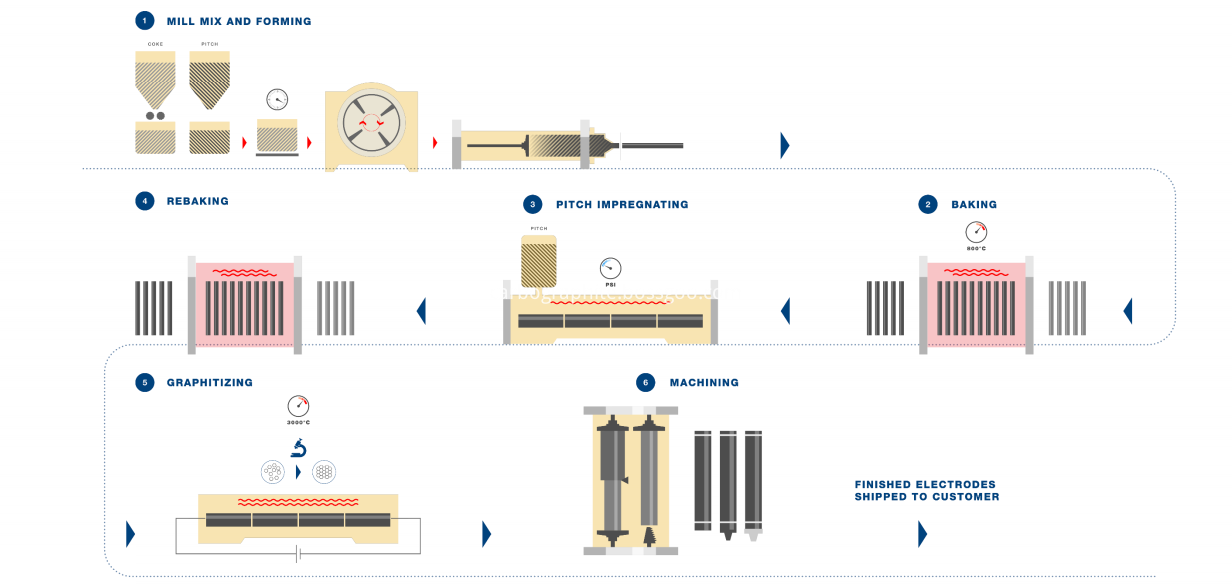

Graphite Electrode Manufacturing Process

Needle coke has the features of needle-like crystals develop and low thermal expansion coefficient. Pitch is produced by heat treatment of coal tar carbonizes under heat (50% yield). Needle coke and pitch are mixed and then molded. Heat treatment is then applied in the baking and graphitization process to form the finished product.



Carbon Graphite Electrodes graphite electrode manufacturers


Quality Assurance of Our Graphite Electrode

Our business success rooted in "No compromise on quality", our graphite electrodes grades are made to last, third party inspection such as SGS is available before delivery.

HP UHP 600mm graphite electrode arc furnace


Why us-Professional Manufacturer Supplier of Garphite Electrode
Make Big Difference to Our Customers

CarboGraphite is a leading manufacturer of graphite electrodes for over 20 years, CarboGraphite offers only high quality graphite electrodes of various grade of RP, HP, UHP at reasonable prices. Our factory covers an area of 120,000 ㎡, with over 110 techinical staffs, equipped with latest automated production line in modern workshop, CarboGraphite is capable to produce and export 60,000MT annually, it also enables CarboGraphite to be the fixed supplier for many large state-owned steel plants worldwide. Besides, We work with our excellent overseas agents and distributors in local market, to make CarboGraphite as a well-known brand. CarboGraphite impress our clients with our high quality and reputed services.

graphite electrode price

Cooperation

CarboGraphite has developed a rich number of agents, our distribution net enable us to solve clients' problem as early as possible. Besides, every year we pay regular visits to clients plants to check how we can improve ourselves.

HP UHP 600mm Graphite Electrode Price

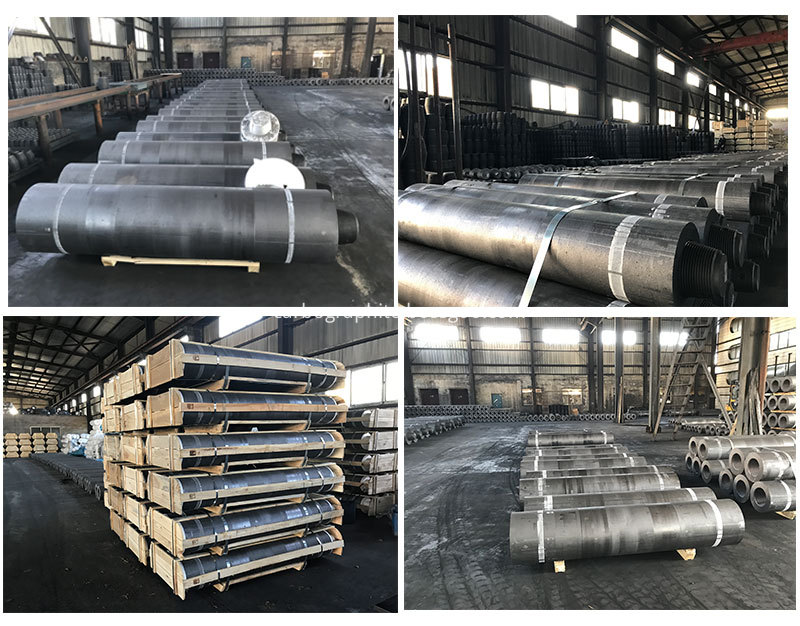

Packing and Shipping

With CarboGraphite, we pay very careful attention to the packing and shipping to protect graphite electrodes from mositure, collision, ensure the intergrity and safety of clients' goods in sea shipping. Thick wall pallets packed in container, Insurance available as well.

UHP 600 Graphite Electrode Steelmaking Iran graphite electrode price chart

Pricing

HP UHP Graphite Electrode Price

Reach us now for Graphite Electrode pricing. The graphite electrode international price is fluctuant. It depends on the graphite electrode demand.

Write inquiry here below in the red box please. Carbographite are pleased to discuss your purchase requirements.

Soonest reach you at 24/7.

HP UHP 600mm Graphite Electrode for Steel Making Carbon And Graphite Electrodes

Carbographite Industrial PTE.LTD

 Carbographite Industrial PTE.LTD established in 1991, a leading manufacturer of premium quality graphite electrodes with RP HP and UHP grades which diameter ranging from 150-700mm, For now, there are three independent factories in Carbographite which are located in Handan/Gongyi/Jilin. For more than 2 decades, we have been serving the industry and continous improvements in technology and strict quality control, making us one of the major supplier of graphite electrodes. Product has export to ITALY, UKRAINE, RUSSIA, SINGAPORE, IRAN, PAKISTAN,EGYPT.
